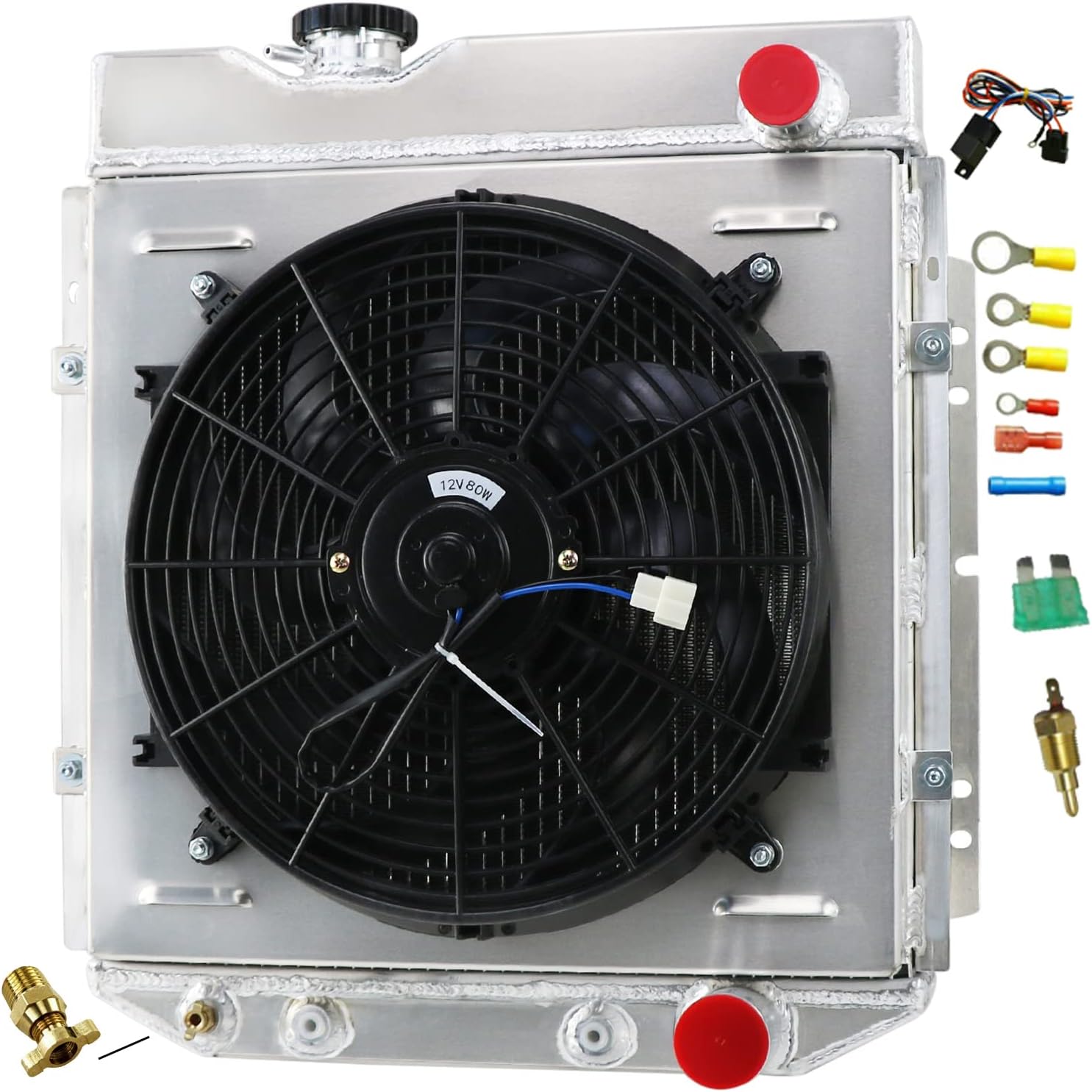

Aluminum Radiator For 1964 1965 1966 64 65 66 Ford Mustang Falcon Ranchero Shelby GT-350H 4 Row Radiator shroud fan Relay Kit

Fitment: For Ford Mustang Shelby Gt-350h At Mt 3row 65-66 V8 For Ford Mustang Many Models 65 66 For Ford Mustang Shelby Gt-350 V8 4.7 Mt At For Ford Mustang V8 260 289 At Mt 1964-1966 For Ford Mustang / 63 64 65 Falcon Comet 65 66 For Ford Mustang / 63-65 Falcon Comet 65 66 For Auto And Manual Package Include: 1 X 4-Row AA5052 Aluminum Radiator 1 X CNC Machined Radiator Cap 1 X AA5052 Aluminum Shroud 1 X 14" Fans (Includes mounting kits) 1 X Thermostat Relay Kit Fans Details： Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050” Thickness (in): 2.500” Number of Blades: 8 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Radiator Details: 4 Row Core Material: Full Aluminum Core and Tank: All Aluminum Transmission：Automatic and Manual. Trans Cooler Details : 1/8-27 NPT Mounting Type is: Bracket Style: Downflow Part Number: 0259AA,RA-SBCF60,433259,CU130,8010130,2301,SPTCU130,130,0259AA,433259,02ARA8208ASL,CC259 ,EC259 ,AE259 ,MC259,DPI259 ,CUC259,1605-427071,19010P03505，19010P07014,19010P1ZA52 Thermostat Kit Installation: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. Probe typically threads into radiator, water outlet or manifold. RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans.

• Core Size : 16.46" H x 16.85" W x 2.44" T;Overall Size: 21.54" H x 19.61" W x 5.06" T ; Inlet/Outlet: 1.5"/1.77"; Hose Fitting: Passenger ; Lower Hose Fitting: Passenger
• Thread Size: ￠26×150×1/8-27NPT（T); Trans Cooler Details: Vert - 9 7/8 Horizontal - 17 3/4 ; Includes CNC machined filler neck and cap,OEM Style Brass Petcock Drain
• Easy To Install: Light weight direct bolt-on replacement, stronger & higher capacity for coolant
• High-quality material: Transmission Oil Cooler is constructed of high quality AA5052 aircraft grade aluminum construction to ensure an extremely long lasting operate life. The core of the Transmission Oil Cooler is welded in vacuum brazing furnace, no epoxy.
• Brazed core technology to guarantee optimum performance and dependability ; Carefully crafted to exceptional OE standards for precise fit.
