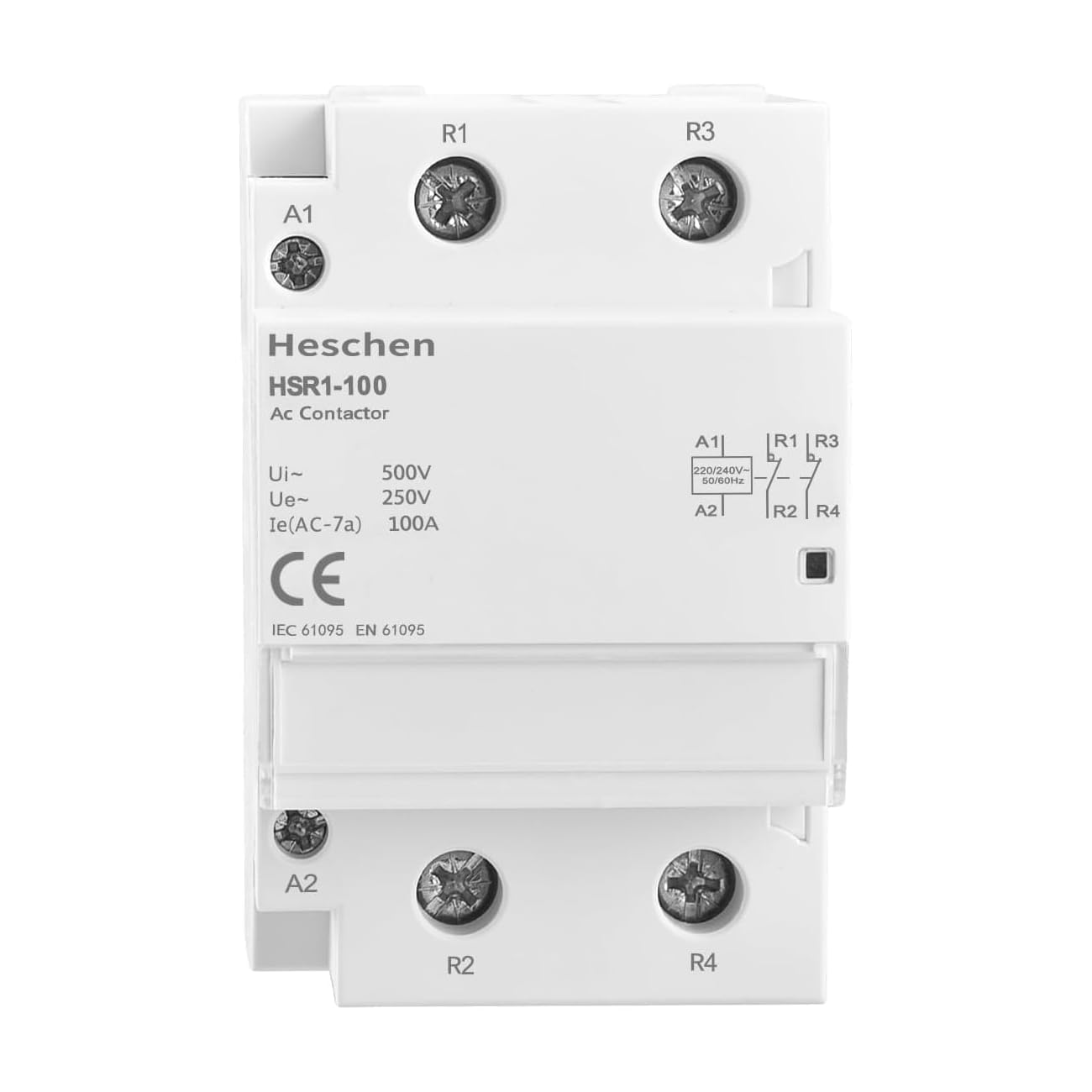

Heschen Household AC Lighting Contactor Switch, HSR1-100, Ie 100A, 2 Pole, Two Normally Closed, AC 220V Coil Voltage, 35mm DIN Rail Mount
Product details
| Management number | 221103204 | Release Date | 2026/05/03 | List Price | $9.32 | Model Number | 221103204 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Household AC Contactor is mainly designed for AC 50Hz or 60Hz circuits with 220V/230V. Rated operating voltage in AC-7a usage, rated operating voltage up to 230V, rated operating current up to 100A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 5kA circuit. For distance connect or break the circuit.Application: for home, apartment, hotel, automatic cut off or connect the power.
- Product Name: Household AC Contactor
- Rating: 220V/230VAC, 100Amp; Contact Type: 2 NC, 2 Poles
- Ue : 250V, Ui : 500V
- AC-7a 22KW; AC-7b 6.5KW
- Net Weight: 290g
| Model | HSR1 100 |
|---|---|
| Voltage | 230 Volts, 240 Volts |
| Brand Name | Heschen |
| Part Number | HSR1-100 2P 220V |
| Manufacturer | Heschen |
| Mounting Type | DIN Rail Mount |
| Current Rating | 100 Amps |
| Number of Poles | 2 |
| Circuit Breaker Type | Standard |
